SPECIFICATION  | |
WORKING AREA  | 1300mm×2500mmx200mm  |
REPEATABILITY  | 0.04/300mm  |

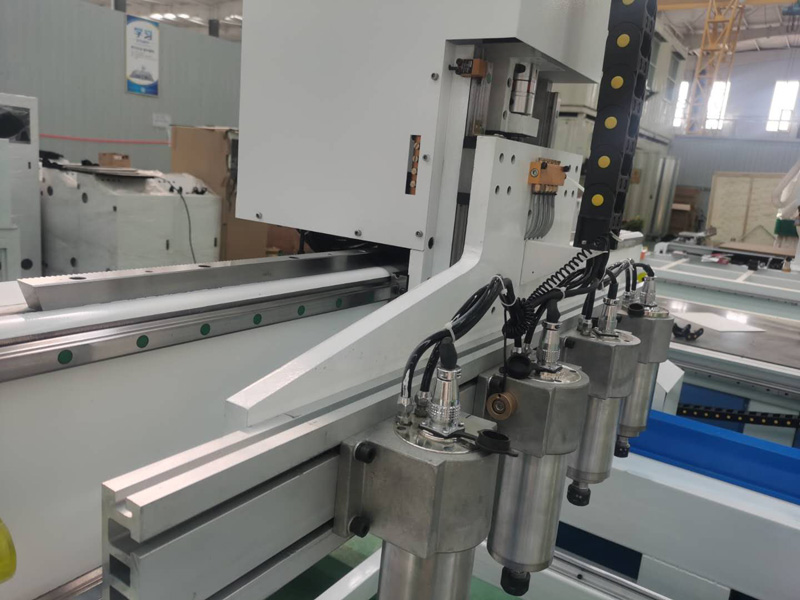

SPINDLE POWER  | 3.0KW(WATER COOLING,6 SPINDLE)  |
GUIDE WAY  | LINEAR (HIWIN)  |
ROUTER BITS DIAMETER  | Φ3.175 Φ6 Φ12.7  |
POWER  | AC380V/50HZ  |
MOVING SPEED  | 30m/min  |
WORKING SPEED  | 25m/min  |
TRANSMISSION  | Y AXIS HELICAL RACK, X Z AXIS BALL SCREW  |
Spindle rotating speed  | 24000rpm  |
Command  | G code*.u00*.mmg*plt  |

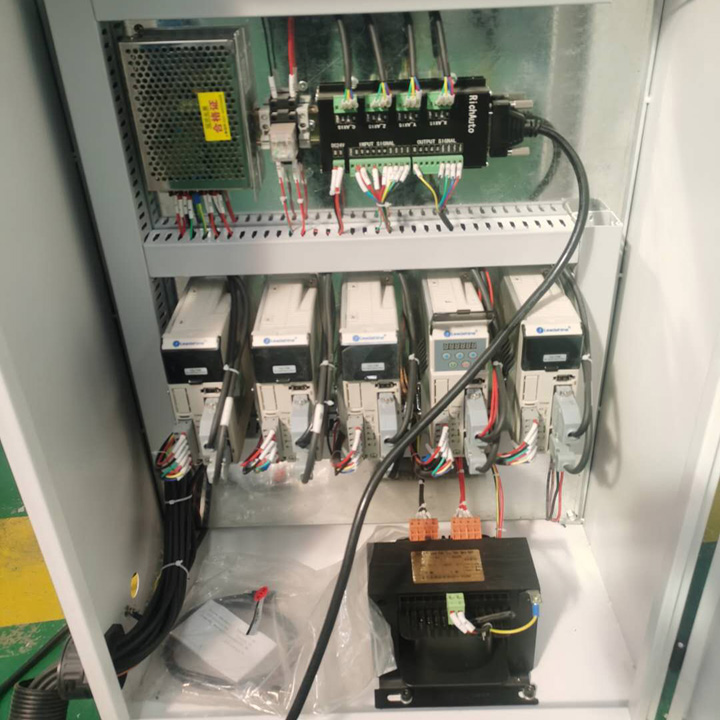

CONTROLLER  | NCwork  |
MOTOR  | STEP MOTOR  |
ACCESSORY  | DUST COLLECTOR/VACUUM SYSTEM  |

◆The traveling speed can reach 30m/min High-speed cutting speed can reach 25m/min
◆It adopts advanced DSP NC system, handle-operation, simpler operation, more humanistic design, using unique intelligent budget rules, making full use of the electrical potential, achieving high-speed processing, curve linear synchronous, and more perfect curves
◆Professional and human-based 3D control system
◆Optional automatic orientation system, temperature control system
Woodworking, advertising industry, seal industry, craft and gift, art mold, mold
Applicable material: wood, acrylic, double-color board, PVC, EVA, ABS board, stone, imitation stone, metal, aluminum mold
Major application fields: furniture, furniture decoration, wood working decoration, musical instrument, wooden handicraft
Woodwork industry: sewing machine table, machine cabinet panel, sporting equipment, wooden door
Mould industry: wooden mold, aviation wooden mold
Music instrument: three-dimensional wood carving in relief, and profile cutting
